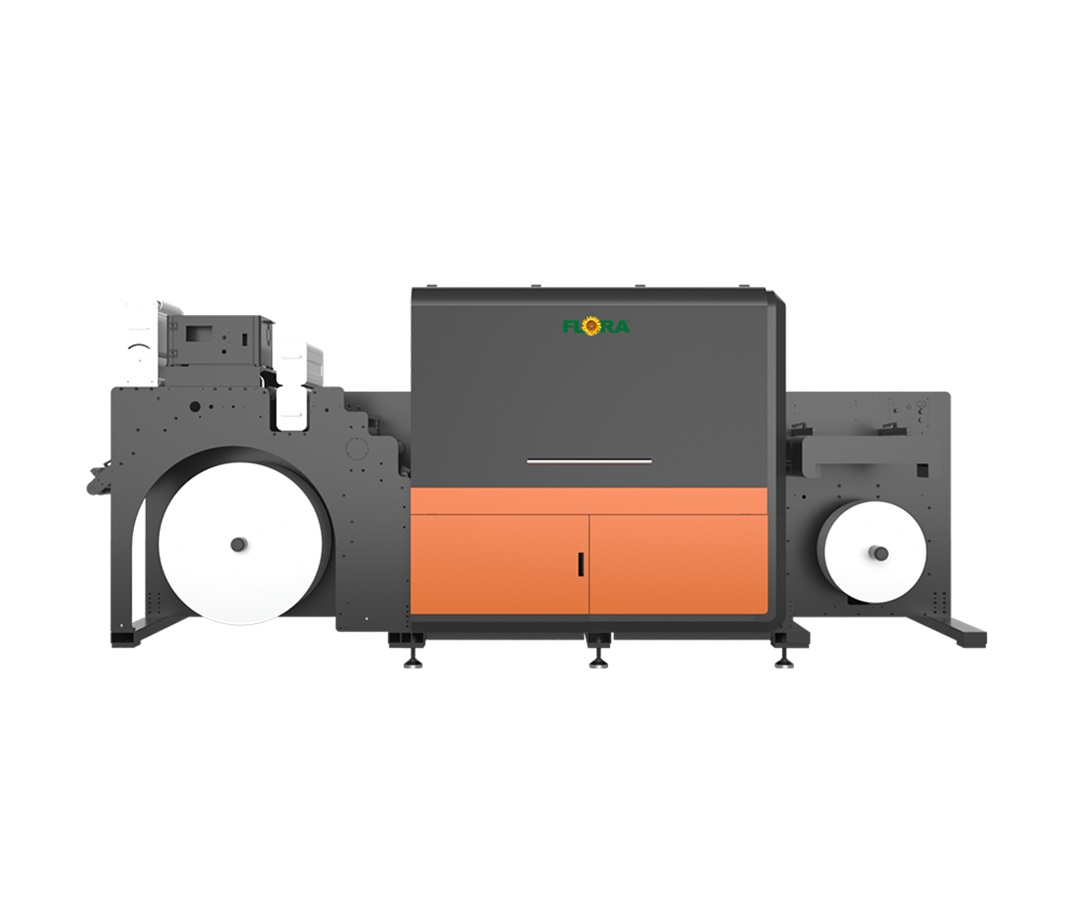

Flora J-350GT Inkjet digital Label Press

-Wide colour gamut, expandable

CMYK configuration for accurate colour reproduction, covering around 85% of the Pantone colour gamut

-Automatic cleaning and moisturising

One-key automatic cleaning function, saves a lot of startup time and maintenance time
Automatic moisturisation on standby to effectively protect the nozzles and prevent plugging

Description

Print Control
PH Technology	High-precision piezoelectric printhead
Print Resolution	Maximum resolution up to 1200x1200dpi)
Productivity	75m/min
Inks
Ink Type	UV ink
Color Option	CMYK+W
Ink Tank Capacity	5 L/C、3L/W
Media Handle
Media Feeding	Tension detection, paper break detection, roll diameter detection, etc.
Tension control	Full closed-loop tension control system
Max. Roll Diameter	Max. roll diameter:1000mm, core：76mm 3” air shaft
Media Thickness	0.04-0.35mm
Media Type	Coated paper, synthetic paper and film, PE/PET/PVC, etc.
Max. Print Width	350mm
Corona System	Contact double-sided dust removal device
Anti-static System	In and out inkjet system plasma static elimination
Max. Media Width	370mm
Wind System	Including press system
RIP Data Interface/RIP
Data Interface	Fiber optic transmission
Operation Interface	Visual simple UI interface
Dimension/Weight
LxWxH	4360x1860x1900mm
Weight	3500kg
Set-up Space	≈8.15㎡
Optional
Film covering	With adhesive film
Still picture	BST
Installation Condition
Condition	20-25℃，30-70% (non condensation)
Best Condition	22.5-27.5℃，45-65% (non condensation)
Power Supply	380VAC，3L+N+PE，50-60Hz；Max. 55kw)
Compress Air	0.6MPa, clean without condensation
Warranty	One year (Please (onsult your local deler for details)
the final specification of the machine is subject to actual product. Please contact the sales manager for the latest specification data. The company reserves the right of final interpretation of this brochure.
