$0.00

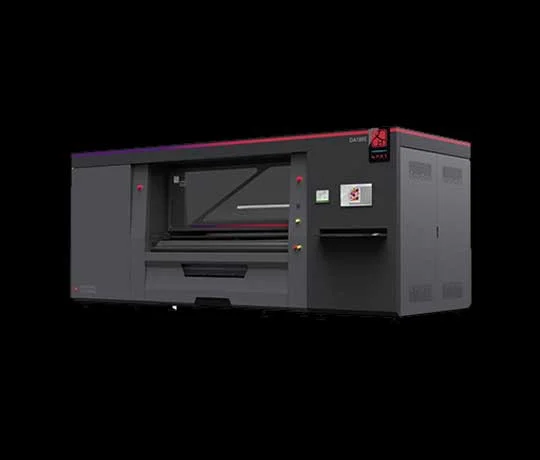

High-Speed Conveying-Belt Direct to Fabric Digital Textile Printer DA188S
Description
| Model | DA188S |
| Name | High-speed Conveying-belt Direct to Fabric Digital Textile Printer |
| Print Head | Kyocera Print Heads 32H |
| Max. Print Width (mm) | 1850 |
| Max. Cloth Width (mm) | 1900 |
| Maximum Allowable Roll Diameter of Rewinding Cloth Feed Holder (mm) |
Φ400 |
| Maximum Allowable Weight of Rewinding Cloth Feed Holder (kg) |
100 |
| Maximum Allowable Roll Diameter of External Cloth Feed Holder A (mm) |
Φ1600 (Optional External Fabric Feeder) |
| Printing Speed（㎡/hr） (Multiple modes available) |
High speed mode 1 @508*600DPI|1pass：1080 |
| High speed mode 2 @600*600DPI|1pass：900 | |
| General mode 1 @508*1200DPI|2pass:540 | |
| General mode 2 @600*1200DPI|2pass:450 | |
| Quality mode @600*1800DPI|3pass：300 | |
| High precision mode @600*2400DPI|4pass：225 | |
| Ink Type | Reactive ink, acid ink, pigment ink, disperse ink,high temperature disperse ink |
| Ink Color | C, M, Y, K, O, B, R, Lk, Lm, Lc, FM, FY |
| Print Medium | Cotton, linen, silk, nylon, polyester, blended, elastic fabrics and new fiber woven and knitted fabrics |
| Supported Image Type | JPG/TIFF/BMP/Other |
| RIP System | HPRT PRINT,Neostampa (Optional) |
| Dimensions: L*W*H (mm) | 4680*2200*2000 |
| Weight (kg) | 4000 |
| Power Consumption (Kw) | Printer≦10 |
| Power Supply | Printer: AC380V| three-phase five wire system|20A（40KW）|50Hz/60Hz |
| Compressed Air Supply | 0.6MPa|1m³/hr (Dry, no oil or water vapor) |
| Operating Temperature | 20~30℃ |
| Operating Humidity | 45%-70% (Non-condensing) |
| Drying Option | Electric heating/steam heating/natural gas heating and other drying rooms |
| Certification | OEKO-TEX,AATCC,CE |
