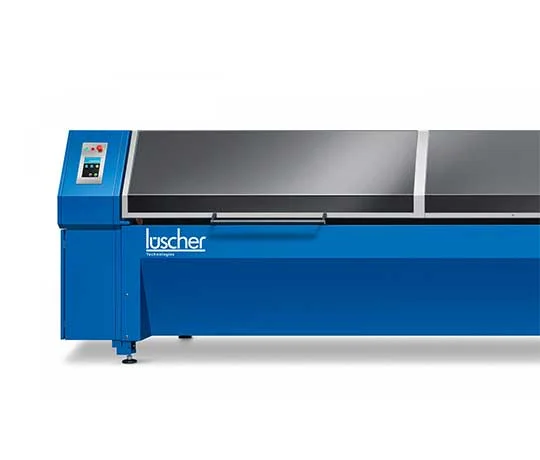

Jetscreen! LT Round

High Performance Reserves

The laser diodes have high power capacity, allowing their energy to be adapted to the requirements of any emulsion. There is no need for high-speed CtS emulsions; any standard emulsion or thick layer can be imaged and cured by JetScreen! LT round.

Modular Design

The direct imaging system is modular and can be tailored to the requirements and special requests of the customer. The standard configuration includes one 1’200 dpi setting head with 16 individually controllable laser diodes.

Description

Machine Type	Max. Screen Lenght	Machine Dimensions (L x W x H)	Weight
JetScreen! LT round 22	2’200 mm (86.6 inch)	3’980 x 1’110 x 1’280 / 2’000 mm (156.7 x 43.7 x 50.4 / 78.7 inch)	2’000 kg (4’409 lb)
JetScreen! LT round 35	3’500 mm (137.8 inch)	5’370 x 1’110 x 1’280 / 2’000 mm (211.4 x 43.7 x 50.4 / 78.7 inch)	2’200 kg (4’850 lb)

Machine Type

Max. Screen Lenght

Machine Dimensions (L x W x H)

Weight

JetScreen! LT round 22

2’200 mm

(86.6 inch)

3’980 x 1’110 x 1’280 / 2’000 mm

(156.7 x 43.7 x 50.4 / 78.7 inch)

2’000 kg

(4’409 lb)

JetScreen! LT round 35

3’500 mm

(137.8 inch)

5’370 x 1’110 x 1’280 / 2’000 mm

(211.4 x 43.7 x 50.4 / 78.7 inch)

2’200 kg

(4’850 lb)

Feature	Specification
Repeats	640 / 725 / 820 / 914 / 1’018 mm
Resolution	1’200 dpi
Resolution optional	2’400 dpi
Laser Type	UV, 405 nm
Number of Laser Diodes	16 / 32
Power Supply	3 x 400 V + N + PE / 50 – 60 Hz / 32 A
Air Supply	6 – 10 bar, 150 l/min
Power Consumption	approx. 0.5 kW
Ambient Conditions	40 – 65 % humidity at 18 – 25 °C (64.4 – 77 °F)
Room Conditions	Yellow light, vibration-free floor
