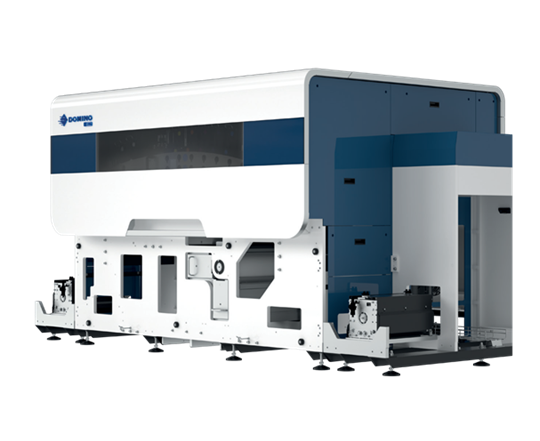

N730i 1200dpi digital label press
Description
| Technology | Piezo drop-on-demand inkjet and Brother BITSTAR™ printheads |
| Printing Speed | Up to 70m/min (230ft/min) with optimum print quality |
| Image Resolution | 1200dpi native including 3 drop sizes |
| Image Formats | 340mm (13.4”) maximum print width |
| Web Width | 170mm (6.7”)* to 340mm (13.4”) |
| Media Type | Polyethylene, polypropylene and paper self- adhesive label stock |
| Selected unsupported media | |
| Inks | UV93 is available in UV curable Cyan, Magenta, Yellow, Black, Orange, Violet and White. |
| Unwind/Media Preparation/Rewind | 1000mm (39”) diameter |
| Maximum roll weight: 350kg (772lbs) | |
| Servo driven tension control | |
| Corona treatment module | |
| Dual sided web cleaner | |
| Web guide module | |
| Workflow | Sunrise DFE |
| Domino ScreenPro, ScreenPro HS, ScreenPro UHS | |
| JDF/JMF Support | |
| Central Print Module | Anti-static control |
| Up to 7 colour print section | |
| UV LED pinning | |
| UV curing module | |
| Chilled roller | |
| Options | In-line finishing interface |
| In-line monitoring and inspection camera system | |
| Flexo stations – priming/varnishing | |
| Dimensions | 6.208m (L) x 2.066m (H) (2.218m minimum clearance required) x 4.127m (W) |
| 20.3ft (L) x 6.7ft (H) (7.25ft minimum clearance required) x 13.7ft (W) | |
| Weight | Unwind: 788kg (1737lbs) |
| Print module: 2300kg (5070lbs) | |
| Rewind Unit: 679kg (1497lbs) | |
| Electronics Cabinet(s): 750kg (1654lbs) | |
| Ink Cabinet(s): 100kg (221lbs) each | |
| Flush Cabinet: 75kg (165lbs) each | |
| Services | Three phase power – one 380-420V drop Compressed air – one drop @ 6-8 bar (90-115psi), clean and dry |
