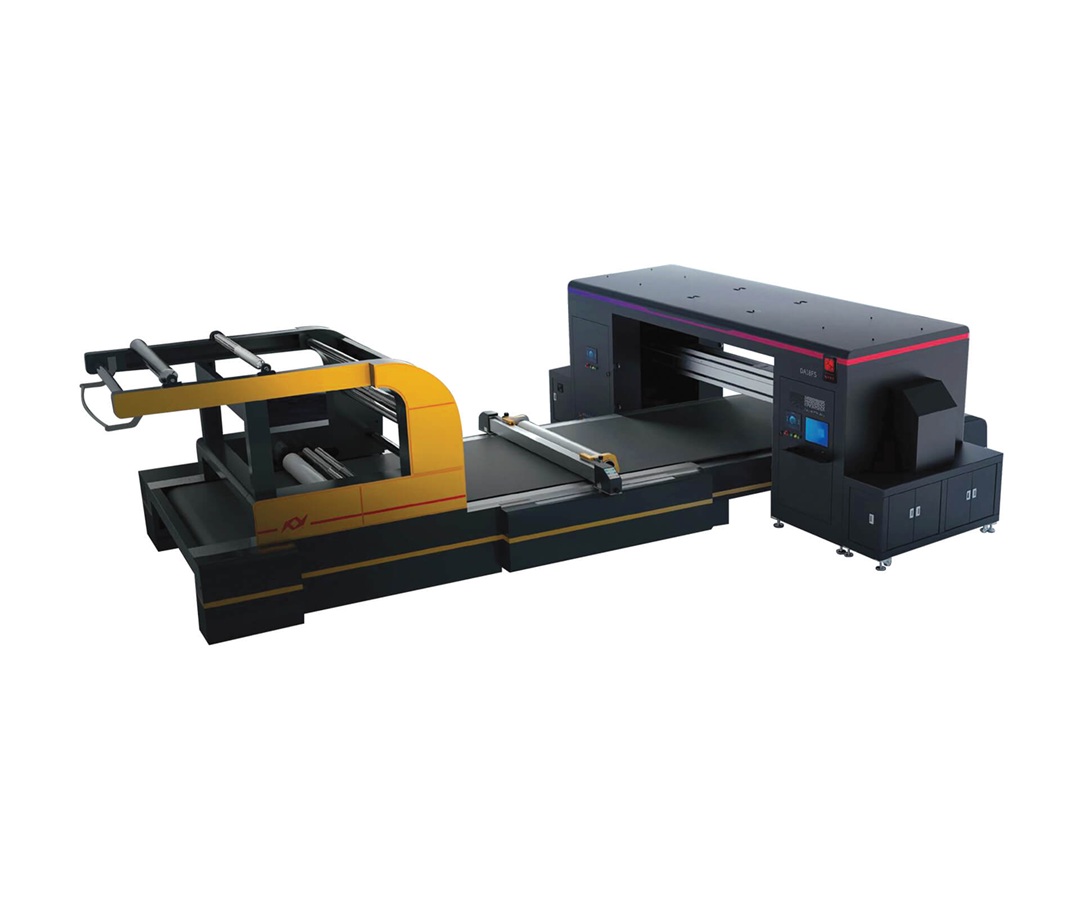

Online Sizing Flat Bed Screen + Digital Textile Printer D18FS Hybrid
Description
| Model | DA18FS Hybrid |
| EN-Name | Online Sizing Flat Bed Screen+Digital Textile Printer |
| PrintHead | Kyocera PrintHeads 64pcs |
| Max Effective Printing Width (mm) | 1800 |
| Max Fabric Feeding Width (mm) | 2000 |
| Resolution (dpi) (Selection of model based on client needs) |
High Speed Model 1 @508*600dpi | 1pass |
| High Speed Model 2 @600*600dpi | 1pass | |
| Normal Speed Model 1 @508*1200dpi | 2pass | |
| Normal Speed Model 2 @600*1200dpi | 2pass | |
| Quality Model 1 @508*1800dpi | 3pass | |
| Quality Model 2 @600*1800dpi | 3pass | |
| Printing Speed (㎡/hr) (Selection of model based on client needs) |
High Speed Model 1 @508*600dpi | 1pass: 2160 |
| High Speed Model 2 @600*600dpi | 1pass: 1920 | |
| Normal Speed Model 1 @508*1200dpi | 2pass: 1080 | |
| Normal Speed Model 2 @600*1200dpi | 2pass: 960 | |
| Quality Model 1 @508*1800dpi | 3pass: 720 | |
| Quality Model 2 @600*1800dpi | 3pass: 640 | |
| Ink Types | Reactive, acid, pigment, disperse, high temperature disperse |
| Ink Colours | 8 colours: C, M, Y, K, O, B, R, G |
| Print Medium | Cotton, linen, silk, nylon, polyester, blends, elastic fabrics and new fibre woven and knitted fabrics |
| Ink supply system and Degassing system | Automatic ink supply system, automatic degassing and automatic negative pressure system |
| Printhead Cleaning & Maintenance | Automatic cleaning and wethold system |
| Height Limit Detection and Deviation Rectification | Automatic detection of system with medium exceeding height limits、Adjustable belt deviation rectification system |
| Operation Interface | Industrial Touch Screen Control |
| RIP System | HPRT RIP, Neostampa |
| Machine Size: L*W*H (mm) | 6800*2000*2400(Digital textile printer only, not including flat bed screen machine) |
| Weight (Kg) | 4000 (Digital textile printer only, not including flat bed screen machine) |
| Power (Kw) | Printer 9KW(Digital textile printer only, not including flat bed screen machine) |
| Power Supply Requirements | AC380V | three-phase, five-wire system | 18A(9KW) | 50Hz/60Hz(Digital textile printer only, not including flat bed screen machine) |
| Air Supply Requirements | 0.6MPa | 1m³/hr (Dry, oil-free, no vapour) |
| Working Temperature | 20~30℃ |
| Operating Humidity | 45%-75% (No condensate generation) |
| Certification | OEKO-TEX, AATCC, CE |
